1. Executive Summary
The digital commerce landscape is shifting from a human-centric "Discovery Model" (SEO) to an agent-centric "Execution Model" (Agentic Task Fulfillment - ATF). In this new paradigm, standard Schema.org markup is insufficient; it describes what a product is, but not how an autonomous agent can acquire it. This necessitates a shift from passive indexing to active BuyAction (for discovery) with OpenAPI x-openai-isConsequential definitions (for execution) and emerging security layers like x402 and AP2. For Systems Architects, the mandate is to expose "capability surfaces"—deterministic pathways that allow Large Language Models (LLMs) to transition from passive reading to active transaction settlement without hallucination.
2. The Engineering Hypothesis
The Architectural Friction: The "Affordance Gap."
Current e-commerce stacks rely on visual affordances (buttons, modal windows) that are computationally expensive and brittle for AI agents to interpret ("DOM Scraping"). As we observed in our
Human Logic (Visual): A user sees an "Add to Cart" button. The affordance is implied by the visual UI component.
Agent Logic (Semantic): An agent parses the DOM tree. Without explicit instruction, it must use heuristic probability to guess which form triggers a purchase. This introduces "Interaction Cost" and error risk.

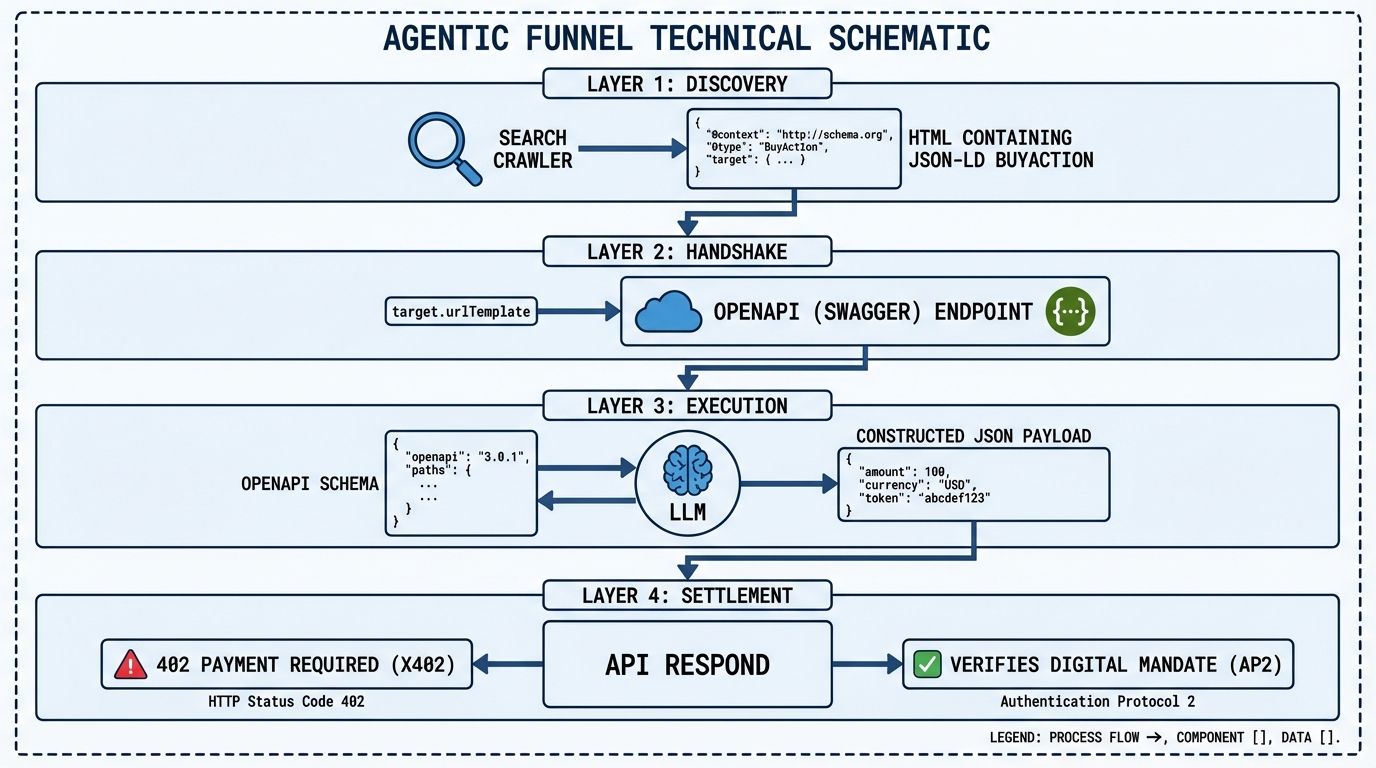

Hypothesis: By explicitly defining digital affordances using potentialAction of type BuyAction pointing to a rigorous OpenAPI endpoint, we create a deterministic "Handshake." This allows the agent to bypass the brittle DOM entirely and execute the transaction directly against the API layer.
3. Forensic Evidence (The Data)
Our audit of the interaction between Schema.org ontologies and OpenAI’s GPT Action specifications reveals a critical dependency chain required for autonomous commerce.
3.1 The Schema.org Discovery Layer
The specific implementation of BuyAction serves as the initial signal. While SellAction exists, the correct semantic implementation for a product page is BuyAction (the potential action available to the user).
Critical Property:
target(Type:EntryPoint). This must connect the semantic definition to the executable URL.Google Merchant Center Data: Google uses
BuyActionspecifically to signal "online purchase, store pickup" capabilities, validating this pattern in production environments.
JSON-LD (The Signal):
{
"@context": "https://schema.org/",
"@type": "Product",
"name": "Enterprise Server Rack",
"offers": {
"@type": "Offer",
"potentialAction": {
"@type": "BuyAction",
"target": {
"@type": "EntryPoint",
"urlTemplate": "https://api.example.com/v1/cart/items",
"httpMethod": "POST",
"encodingType": "application/json",
"contentType": "application/json"
}
}
}
}
3.2 The OpenAI Execution Layer (OpenAPI)
Once an agent discovers the potential to buy, it requires a rigid contract to execute. Failure to provide this often leads to the "Semantic Void" described in our
Timeout: 45 seconds (Round-trip). Checkout flows relying on synchronous inventory locking exceeding this limit will fail.
Payload Limit: 100,000 characters for the response body.
Consequential Flag: The
x-openai-isConsequential: trueboolean is mandatory for transactional endpoints. It forces a "Human-in-the-Loop" confirmation prompt ("Allow this GPT to send data to..."), preventing autonomous bank draining.
4. Information Gain (Unique Insight)
The Protocol War: x402 vs. AP2.
The industry is currently bifurcated on how to authorize these machine-driven payments. We have identified three competing standards that Architects must monitor:
x402 (Crypto-Native): Uses the HTTP
402 Payment Requiredstatus code. The server responds with a payment address (e.g., Lightning Invoice). This is "Bearer Asset" security—ideal for micro-transactions and digital goods.AP2 (Agent Payments Protocol): Google’s enterprise standard. It relies on "Mandates"—cryptographically signed permissions where a user grants an agent a specific budget and scope.
This supports "Verifiable Intent" and integrates with traditional bank rails (KYC compliant). TAP (Trusted Agent Protocol): Visa/Cloudflare’s approach. Focuses on Agent Attestation (proving the bot is essentially "Signed by OpenAI") rather than the payment mechanic itself.
Strategic Insight: For high-value e-commerce, AP2 is the likely winner due to liability shifts and "Verifiable Intent."

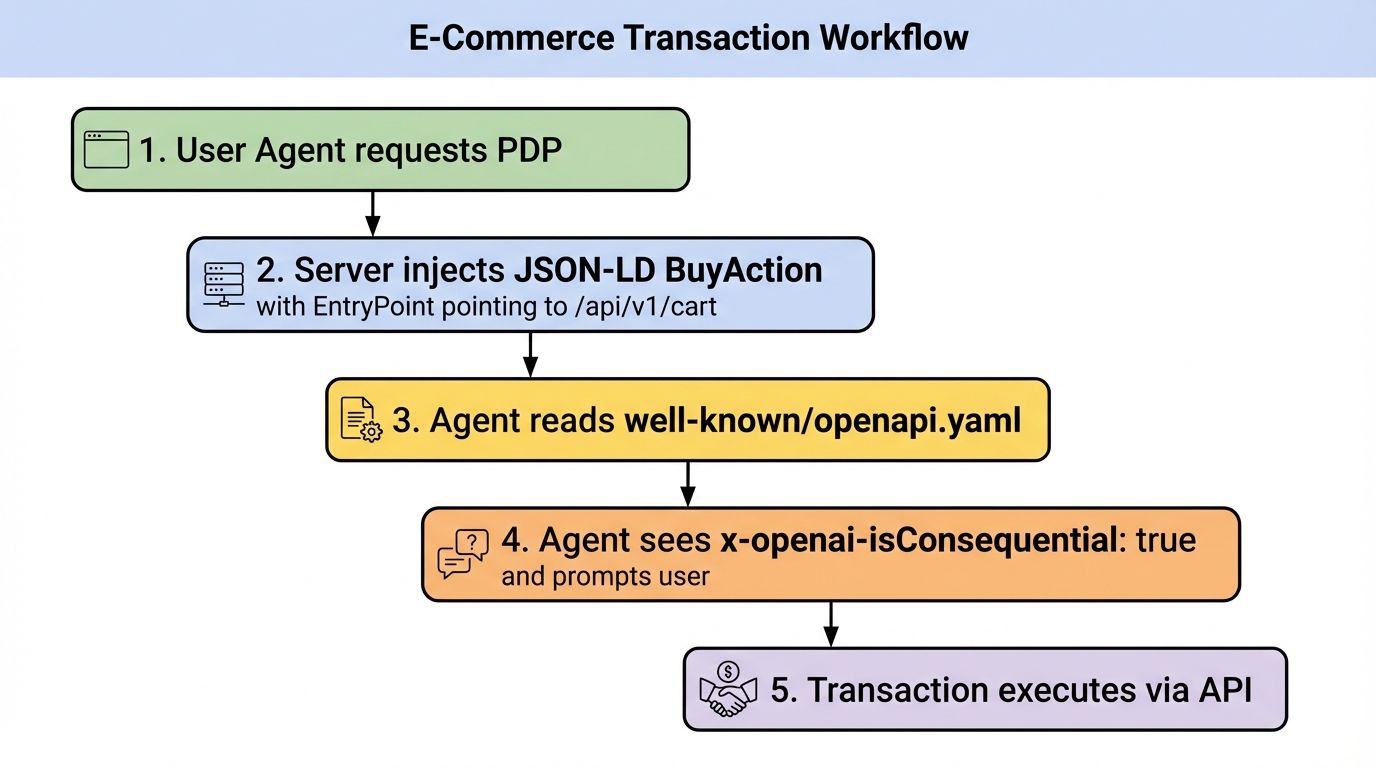

5. Reproduction Steps / The Fix
To enable Agentic Commerce, you must retrofit your Product Detail Page (PDP) architecture to serve both human browsers and AI buyers.
Step 1: Inject the Capability Surface (JSON-LD)
Add the BuyAction to your Offer schema. Explicitly define the EntryPoint and httpMethod as shown in Section 3.1.
Step 2: Configure the OpenAI Specification (YAML)
Create or update your OpenAPI spec to include the specific instruction set for the LLM. The description fields act as the system prompt for the agent.
paths:
/v1/cart:
post:
operationId: addToCart
x-openai-isConsequential: true
summary: Add item to cart
description: Adds the current product to the user's cart. Requires SKU and Quantity.
requestBody:
required: true
content:
application/json:
schema:
type: object
properties:
sku:
type: string
description: The unique SKU found in the product schema.
quantity:
type: integer
default: 1
Step 3: Implement Security Handshakes
Immediate: Enforce OBO (On-Behalf-Of) Authentication. Ensure the Agent passes a user-scoped OAuth token.
Future-Proofing: Implement an HTTP 402 handler or AP2 "Mandate" verification logic on your checkout endpoint to prepare for wallet-native agents.
