Forensic Audit: The Hidden Hydration Tax crippling headless SEO (Amazon vs. Gymshark)

Case Study: The Monolith vs. The Mesh — A Forensic SEO Audit of Amazon & Gymshark

1. The Hypothesis

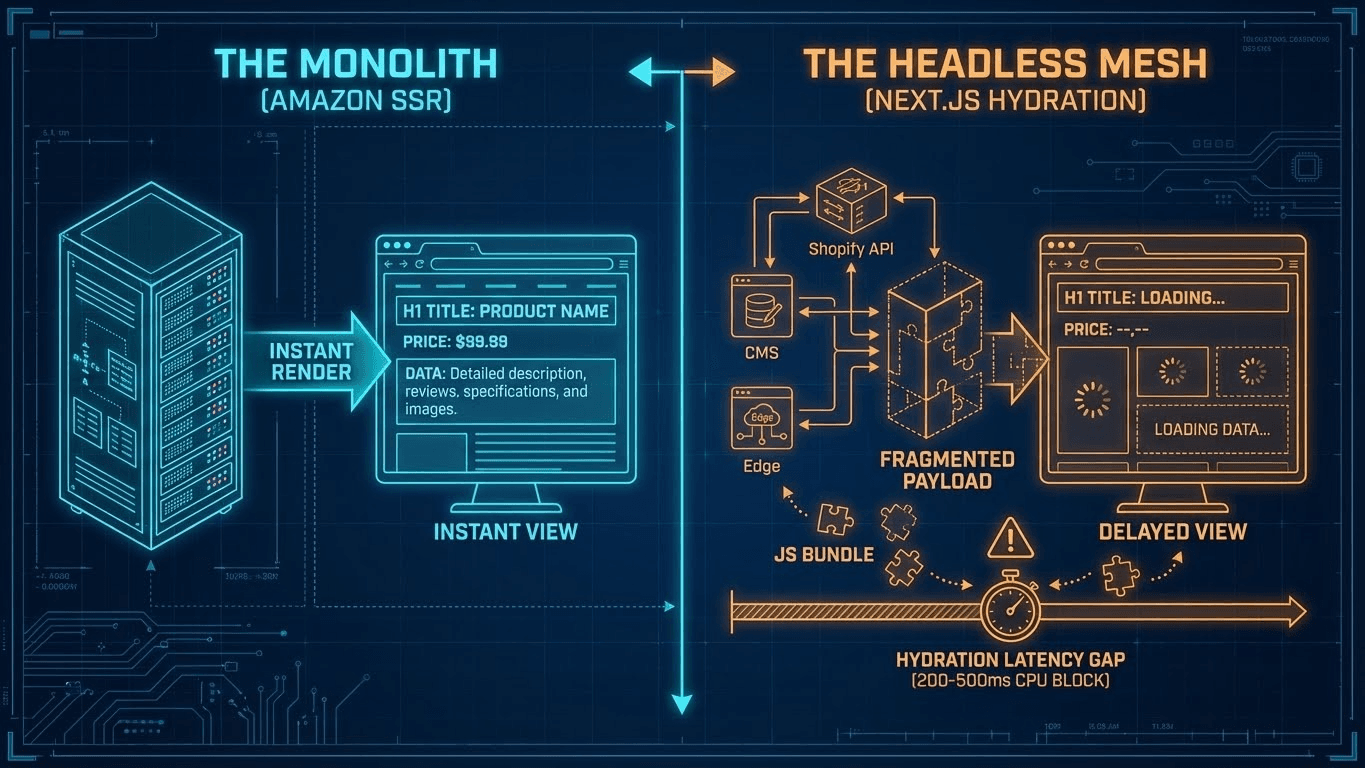

The modern e-commerce stack is currently polarized by a fundamental architectural trade-off: Server-Side Resilience vs. Client-Side Velocity.

Our engineering hypothesis posits that while monolithic architectures (like Amazon) are burdened by massive technical debt and legacy code, their server-side dominance provides superior raw indexability and fault tolerance. Conversely, modern "Headless" architectures (like Gymshark's Next.js implementation) trade server load for client-side processing. This introduces "Hydration Latency"—a critical vulnerability where the time gap between the initial HTML paint and JavaScript execution renders the site temporarily inert to crawlers and users alike.

The Archetypes:

• The Monolith: Amazon.com (Proprietary "AmazonUI" + SSR).
• The Headless Mesh: Gymshark.com (Shopify Plus + Next.js v15.3.6).

2. The Audit Methodology

This analysis is not based on surface-level Lighthouse scores. The data presented is derived from a deep forensic engagement involving:

• DOM Injection Analysis: inspecting non-standard script execution.
• Packet Reconstruction: analyzing the raw byte stream before browser parsing.
• The "Empty Shell" Test: simulating requests with curl to verify content availability without JavaScript execution.
• WAF Fingerprinting: identifying edge-layer defense mechanisms.

3. The Evidence (Forensic Deep Dive)

The forensic log reveals two completely divergent approaches to rendering content.

Brand A: Amazon.com — The "Just-In-Time" Monolith

Contrary to the industry shift toward React/Vue, Amazon relies on a closed-source, legacy framework known as AmazonUI (AUI). This is not on npm. It is a brute-force engineering solution.

The Forensic Proof: We identified a proprietary module loader pattern that stitches CSS and JS on the server based on the specific page context.

HTML

<link rel='stylesheet' href='...#AUIClients/AmazonUI.AmazonUIBaseCSS.AmazonUICarousel...' />

<script>

    // Distinct User Experience Telemetry

    window.ue_csm = { legacy_performance_tracking: true };

    window.ue_id = "AMZN-TRACE-ID";

</script>

The Metric:

• Bundle Size: ~5.3 MB (Uncompressed).
• Rendering Strategy: 100% Server-Side Rendering (SSR).
• Verdict: Despite a catastrophic payload size that would fail Core Web Vitals (specifically INP), Amazon achieves perfect crawlability. The view-source matches the rendered DOM 1:1. The content exists before the client executes a single line of code.

Brand B: Gymshark — The "Hydrated" Mesh

Gymshark utilizes a modern Composable stack: Shopify Plus for the backend, Contentful for CMS, and a custom Next.js (v15.3.6) frontend.

The Forensic Proof: Analysis of the document head reveals the signature of a Rehydration architecture:

HTML

<script type="application/json">

    { "props": { "pageProps": { ... } }, "page": "/", "query": {} }

</script>

The Metric:

• Bundle Size: ~232 KB (Main Bundle).
• Rendering Strategy: Hybrid (SSG + Client-Side Hydration).
• Verdict: While the initial payload is lighter, Gymshark suffers from the "Marketing Tax." The forensic audit identified a "Third-Party Script Explosion" (Klaviyo, Yotpo, Gorgias) injected via Tag Managers.

The Critical Flaw: While Amazon serves a complete page, Gymshark serves a "Skeleton" that must be hydrated. During the 200–500ms window where React is attaching event listeners to the DOM, the main thread is blocked.

4. The Implication for AEO (AI Engine Optimization)

This architectural divergence dictates visibility to AI agents.

Amazon's strategy creates high Fault Tolerance. Simple bots (like early-stage LLM crawlers) that do not execute JavaScript still receive the full semantic payload (Price, H1, Description).

Gymshark's strategy relies on the "Hydration Gap."

1. The browser receives HTML.
2. The browser fetches the JS bundle.
3. The CPU executes the JS to make the page interactive.

If an AI crawler has a strict "Time-to-Interactive" timeout or limited CPU allocation, it may snapshot the page during hydration. This results in the "Zombie Page" effect: the content looks visible, but the data is inaccessible to the bot's parser. Furthermore, by blocking AI crawlers or failing to serve a fully hydrated DOM instantly, headless architectures risk total exclusion from answer engines.

5. Reproduction Steps

You can verify the "Iron Curtain" WAF and the Rendering Strategy using the following terminal commands.

To replicate the Amazon "Soft Block" (WAF Trigger):

Bash

# This request will likely fail with a 503 due to missing TLS fingerprints

curl -I https://www.amazon.com/dp/B099MPWPRY

To replicate the Gymshark "Empty Shell" Status:

Bash

# Inspect the raw output to see if interactive elements (stock checkers) are present before JS

curl https://www.gymshark.com | grep "StockLevel"

6. The Fix

For engineers managing Headless architectures, the following mitigations are required:

1. Aggressive ISR (Incremental Static Regeneration): Do not rely on client-side fetching for product data. Ensure the Next.js build process pre-renders all critical JSON-LD schema into the initial HTML.
2. Strict Script Auditing: The efficiency gained by Next.js is currently being negated by marketing scripts. Move third-party tracking (Gorgias, Yotpo) to a server-side container (e.g., Server-Side GTM) to free up the main thread.
3. Middleware Synchronization: Implement a middleware layer that synchronizes the Shopify backend sitemap with the Next.js frontend in real-time to prevent "Soft 404s" where the frontend exists but the product is OOS on the backend.

7. References

• Primary Source: Forensic Technical SEO Audit: The Monolith vs. The Headless Mesh (Internal Log).
• Amazon Developer Docs: developer.amazon.com/docs/app-submission/amazon-ui.html
• Target Domains: amazon.com, gymshark.com
