1. Executive Summary The enterprise search industry is currently navigating a hazardous conflation between "Federated Search" (distributed query brokerage) and "Unified Indexing" (centralized ingestion). For architects building
2. The Engineering Hypothesis The Gap: "Contextual Dissonance" in Distributed Retrieval.
In a standard RAG architecture, the Large Language Model (LLM) relies entirely on the precision of the retrieved context. The hypothesis posits that Stateless Federation is incompatible with Semantic Search.
When a search engine acts as a broker (Federated), it receives pre-ranked lists from source APIs. System A (Jira) might return a relevance score of 0.9 based on a keyword frequency model. System B (SharePoint) might return a 0.9 based on a probabilistic model. To the broker, these scores appear identical, yet they represent vastly different levels of relevance. Merging them creates a "poisoned" context window where low-value documents displace high-value answers.
Furthermore, traditional federation cannot support Vector Search unless every source system exposes an embedding API—which remains rare. Therefore, the "Gap" is the inability to apply global logic (Vector Embeddings, Entity Centrality, and Decay Functions) to distributed data. The fix requires moving from a "Search" mental model to a "Knowledge Graph" mental model, similar to how
3. Forensic Evidence (The Data) The research identifies three distinct failures in legacy architectures when adapted for RAG: Latency Propagation, Score Incompatibility, and the "HNSW-ACL Conflict."

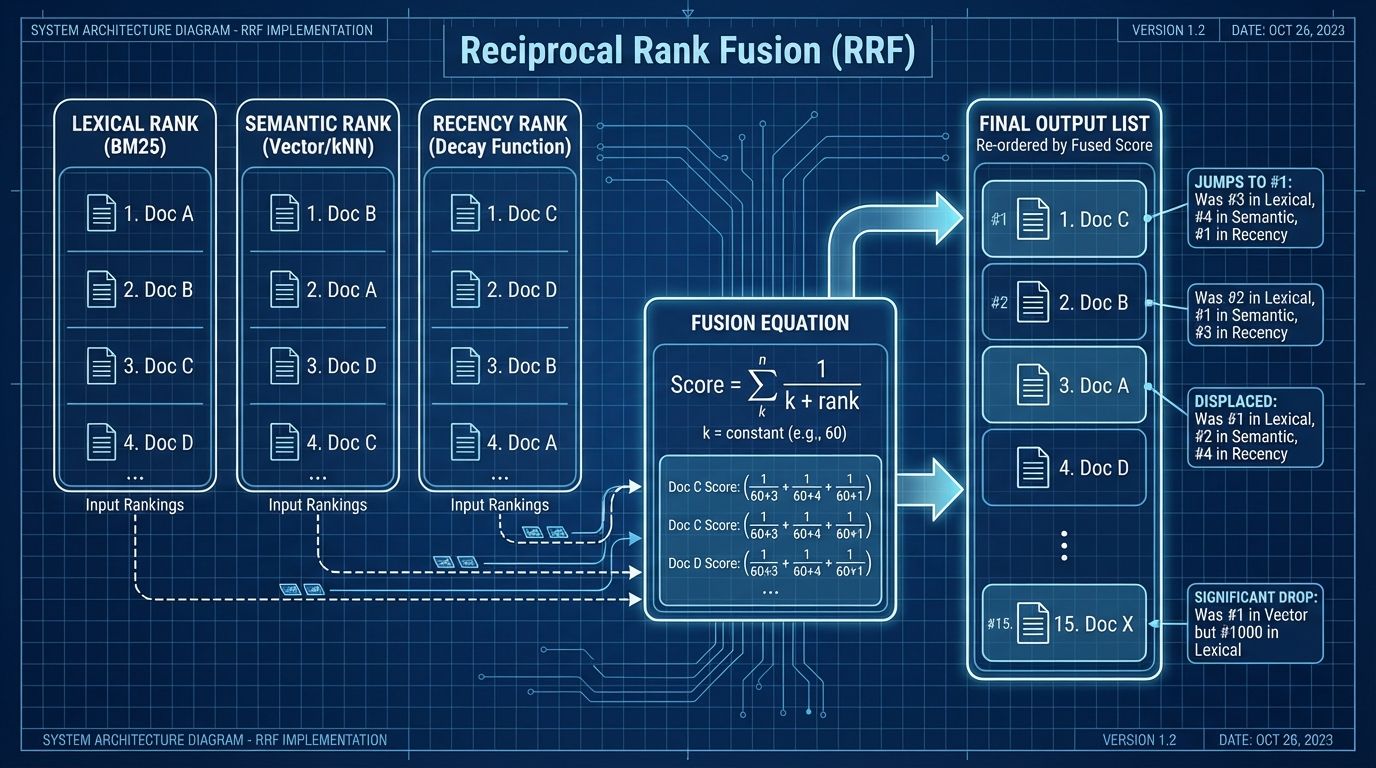

3.1 The Mathematics of Hybrid Fusion (RRF)
To solve the score normalization problem in Unified Indexes, linear combinations of scores fail because lexical (BM25) and semantic (Cosine Similarity) scores follow different distributions. The industry standard has shifted to Reciprocal Rank Fusion (RRF). RRF ignores absolute scores and ranks documents based on their position in multiple result sets, effectively smoothing outliers.
Code Analysis: The RRF Implementation The following configuration demonstrates how modern engines (e.g., Elasticsearch 8.14+) utilize "Retrievers" to fuse these signals natively, avoiding client-side complexity.
{
"retriever": {
"rrf": {
"retrievers": [
{
"standard": {
"query": {
"match": { "text": "Q4 revenue analysis" }
}
}
},
{
"knn": {
"field": "text_embedding",
"k": 10,
"num_candidates": 100,
"query_vector": [0.12, 0.45, 0.88]
}
}
],
"rank_window_size": 50,
"rank_constant": 60
}
}
}
3.2 The Security Latency Penalty
The "Zero Trust" requirement forces the engine to filter results based on user permissions. The research highlights the tension in Late Binding (Query-Time Resolution).
The Issue: HNSW graphs function by "hopping" between nearest neighbors.
The Conflict: If a "Pre-Filter" (ACL) removes nodes before the search, the graph becomes disconnected. The algorithm gets trapped in a "local neighborhood" (an island of accessible nodes) and cannot traverse to the true nearest neighbor.
The Metric: Naive pre-filtering on sparse permissions can reduce recall by 40-60% or increase latency by orders of magnitude if forcing a brute-force scan.
4. Information Gain (Unique Insight) Markdown is the "AEO Schema" for Enterprise RAG.
Most engineers focus on the embedding model (e.g., OpenAI vs. Cohere). However, the "Silent Killer" of Intranet RAG is the Parsing Pipeline. Our recent
Standard OCR extracts text linearly (Row1 Col1 Row1 Col2), destroying the spatial relationships in tables and columns. When an LLM receives flattened table data, it hallucinates the associations. Similar to how
The unique insight is the adoption of Layout-Aware Markdown as the canonical storage format. LLMs are pre-trained on GitHub repositories; they inherently understand Markdown syntax.
Header Preservation:
# H1signals a topic shift.Table Integrity:
| Col | Col |preserves the grid.
By converting PDFs to Markdown before embedding, you effectively perform "Answer Engine Optimization" (AEO) on your internal corpus. The LLM can navigate the document structure ("Section 3.1") rather than just a bag of tokens.
5. Reproduction Steps / The Fix To build a "Federated-style" Unified RAG system that respects ACLs and Data Structure:
Step 1: Layout-Aware Ingestion
Replace standard text extractors with a computer-vision based parser (e.g., LlamaParse or Azure Document Intelligence).
Target Output: Markdown.
Table Strategy: If tables are complex, use Visual Retrieval (ColPali) which embeds the image of the page directly, bypassing text extraction failures. This aligns with modern strategies for
structuring complex data for agents
Step 2: Parent-Child Indexing
Do not chunk arbitrarily.
Child Chunks: Split Markdown into small segments (256 tokens) for high-precision Vector Retrieval.
Parent Documents: Store the surrounding "Window" (e.g., the full "Section 2.0").
Retrieval Logic: Match on the Child, return the Parent to the Context Window.
Step 3: Optimized Late-Binding Security
Implement Bitset Caching for ACLs.
Identify high-frequency groups (e.g., "All Engineering").
Pre-calculate a Bitset (0s and 1s) representing document access.
Use Filtered HNSW or "HoneyBee" partitioning (Role-based partitions) to prevent graph disconnection during vector search.
Step 4: Decay Function Scoring
Apply a Gaussian Decay function to the ranking logic to solve the "Stale Data" problem.
Origin:
nowScale:
30d(or7dfor fast-moving slack data).Logic: Signals that older authoritative documents are valid, but ancient status updates are noise.
6. Reference Sources
